Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Panjang gelombang: | 1260 ~ 1650 | warna: | Hitam |
|---|---|---|---|
| Nama: | Panel Patch Optik | Fitur: | Rack Mount |
| Aplikasi:: | Jaringan Telekomunikasi / Sistem CATV | Standar:: | IS09001-2008.ROHS |
| Cahaya Tinggi: | fused fiber coupler,lc fiber coupler |
||

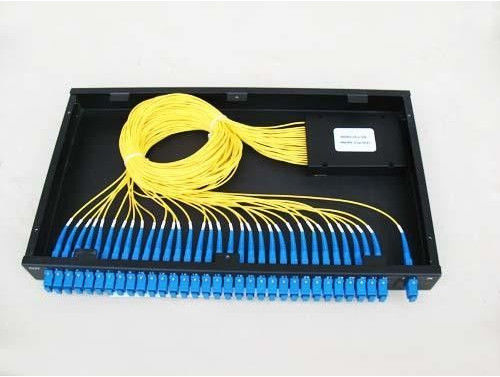

1260 ~ 1650 nm PLC Serat Optik Splitter Untuk Jaringan Telekomunikasi / sistem CATV
fitur
Aplikasi
Spesifikasi
| Mengetik | 1 × 2 | 1 × 4 | 1 × 8 | 1 × 16 | 1 × 32 | 1 × 64 | 2 × 2 | 2 × 4 | 2 × 8 | 2 × 16 | 2 × 32 | 2 × 64 | |
| Jenis serat | 9/125 um SMF-28e atau pelanggan yang ditunjuk | ||||||||||||
| Panjang gelombang operasi (nm) | 1260 ~ 1650 | ||||||||||||
| Rugi Penyisipan (dB) | Khas | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 | 4.0 | 7.0 | 10.5 | 13.5 | 16.5 | 20.5 |
| (P / S) Maks | 3.8 / 4.0 | 7.1 / 7.3 | 10.2 / 10.5 | 13,5 / 13.7 | 16.5 / 16.8 | 20,5 / 21.0 | 4.1 / 4.3 | 7.4 / 7.6 | 10.8 / 11.0 | 14.3 / 14.5 | 17.3 / 17.5 | 20,7 / 21.5 | |
| Loss Uniformity (dB) -Max | 0,6 | 0,6 | 0.8 | 1.2 | 1.5 | 2.5 | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 | |
Polarisasi Dependent Loss (dB) -Max | 0,15 | 0,15 | 0,25 | 0,3 | 0,3 | 0,3 | 0,2 | 0,2 | 0,3 | 0,4 | 0,4 | 0,4 | |
Dimensi (WxHxL) (mm) Pita / Serat Telanjang | 4 × 4 × 40 | 4 × 4 × 40 | 4 × 4 × 40 | 4x7 x50 | 4x7 x50 | 4x12 x60 | 4 × 4 × 50 | 4 × 4 × 50 | 4 × 4 × 50 | 4x7 x60 | 4x7 x60 | 4x12 x60 | |
Dimensi (WxHxL) (mm) ABS BOX (0.9, 2.0, 3.0mm) | 100x 80x10 | 120x80x18 | 141x114x18 | 100x80x10 | 120x80x18 | 141x114x18 | |||||||
| Directivity (dB) -Min | 55 | ||||||||||||
| Return Loss (dB) -Min | UPC: 50 APC: 60 | ||||||||||||
| Suhu Operasional (℃) | -40 ~ 85 | ||||||||||||
| Suhu Penyimpanan (℃) | -40 ~ 85 | ||||||||||||
| Jenis konektor | FC, SC.ST, LC, MU… .. | ||||||||||||
