| Aplikasi: | FTTH FTTB FTTx Jaringan | Nama Produk: | serat optik dikepang |
|---|---|---|---|
| Kehilangan sisipan: | ≤0.20dB | Panjang: | 1M atau disesuaikan |
| Panjang gelombang: | 1310 / 1550nm | Suhu operasi: | -40 ~ 75 ℃ |
| Cahaya Tinggi: | corning fiber pigtails,sc apc pigtail |
||

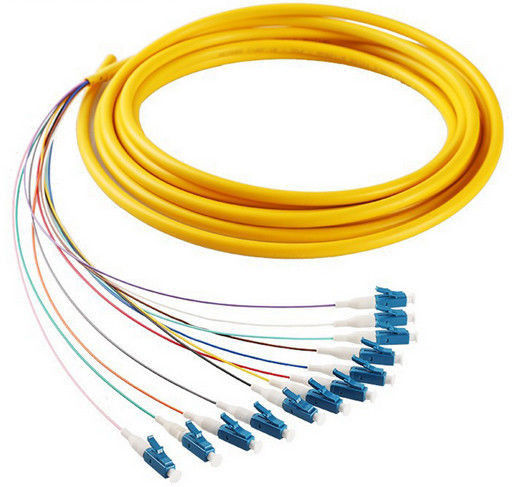

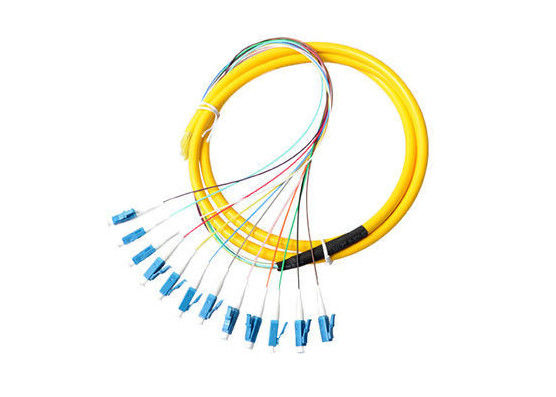

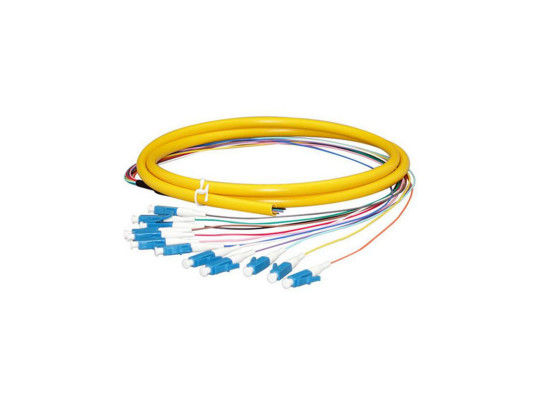

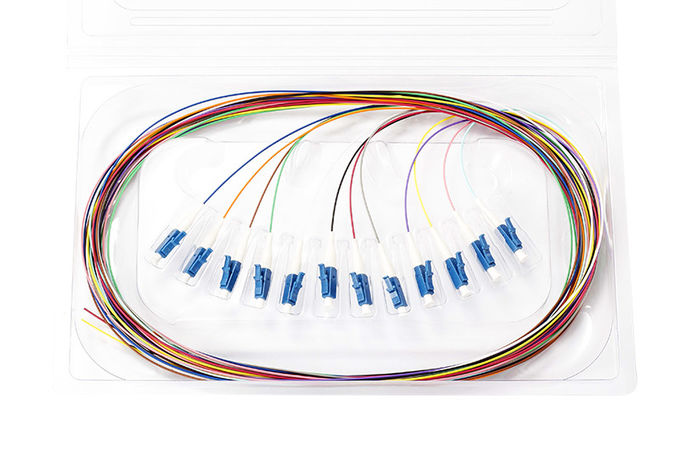

LC / UPC 12 core SM 9/112 serat optik bundel pigtail kuning LSZH keluar jaket
fitur
Aplikasi
Spesifikasi
| Barang | Satuan | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Rugi penyisipan (khas) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Mengembalikan kerugian | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Panjang gelombang operasi | nm | 1310.1510 | 1310.1510 | 1310.1510 | 1310.1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Getaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Suhu Operasional | ° C | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | ||||||||
| Suhu penyimpanan | ° C | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | ||||||||
| Diameter kabel | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
