Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Aplikasi: | FTTH FTTB FTTx Jaringan | Panjang: | 1m 2m 3m atau Disesuaikan |
|---|---|---|---|
| Kehilangan sisipan: | ≤0dd, ≤0dd | Bahan: | PVC / LSZH |

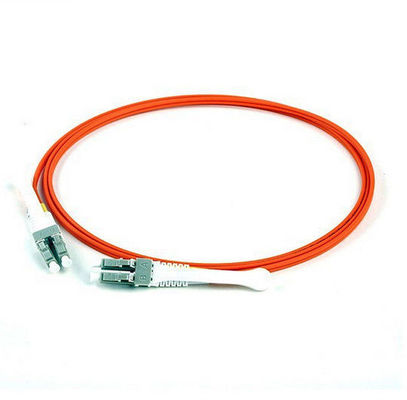

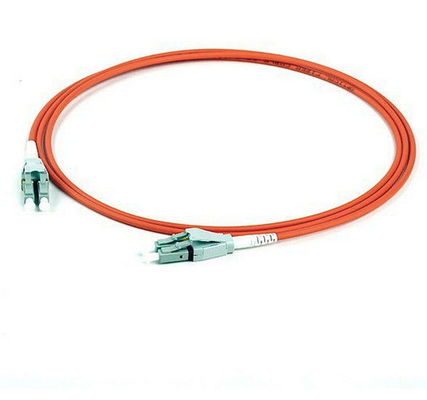

| Nama Produk: | serat optik kabel patch | Polandia: | PC / UPC / APC |
| Cahaya Tinggi: | single mode to multimode fiber patch cord,duplex fiber optic patch cord |
||
| Parameter | Satuan | FC, SC, LC / Kabel serat patch lapis baja | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Rugi penyisipan (khas) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Mengembalikan kerugian | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Panjang gelombang operasi | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Pertukaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Getaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Suhu Operasional | ° C | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | ||||||||
| Suhu penyimpanan | ° C | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | ||||||||
| Diameter kabel | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Aplikasi :
Informasi pemesanan:
